Sontuoec Copper Texture AC Contactor 380v 3P Magnetic Contactor

Product Categories
WENZHOU SANTUO ELECTRICAL CO.,LTD.
Contact Now

Sontuoec Copper Texture AC Contactor 380v 3P Magnetic Contactor

Brand Name : SONTUOEC ,WZSTEC

Model Number : CJX1

Certification : CE

Place of Origin : China

MOQ : 500pcs

Price : Negotiable

Supply Ability : 5000pcs/day

Delivery Time : 15days

Packaging Details : 20PCS/CTN

Standard : IEC 60947-1

Coil Voltage : 24,220,240,380,415V

Rated Current : 20,30,40,50,65,75,630A

Frequency : 50Hz,60Hz,50Hz/60Hz

Pole : 3P

Texture : Copper

Contact Now

SONTUOEC factory supply good price 380V 3TF46 CJX1 series Magnetic Contactor:

Application:
CJX1 (3TF)series AC contactor are suitable in electrical system with AC 50/60Hz, rated operational voltage up to 660V. In AC-3 usage, rated operational voltage up to 380V, rated operational current up to 630A to make or break remote motors or system. They form electromagnetic starters with suitable thermal overload or phase-failure. They are made according to IEC 60947, BS 5424 & VDE 0660.

The contactor is a straight motion mechanism having double breaking contacts. The auxiliary contacts are arranged NO.2NC at most, it is employed the flexible locking connection between the contact support and core, three are no arcisolated panel in the Ie≤22A contactor. In the In≥32A contactors. Three are moulded arc-chute with arc-isolated panel, because all contacts are made of high cnonfusibility and against corrosion silver alloy. All series products can be mounted by screw, Ie≤32A contactor also by installation rail.

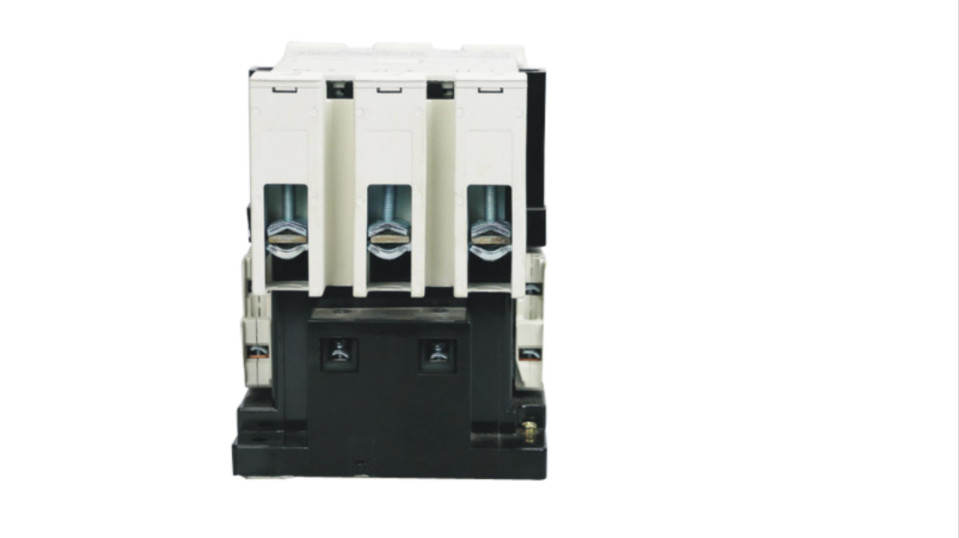

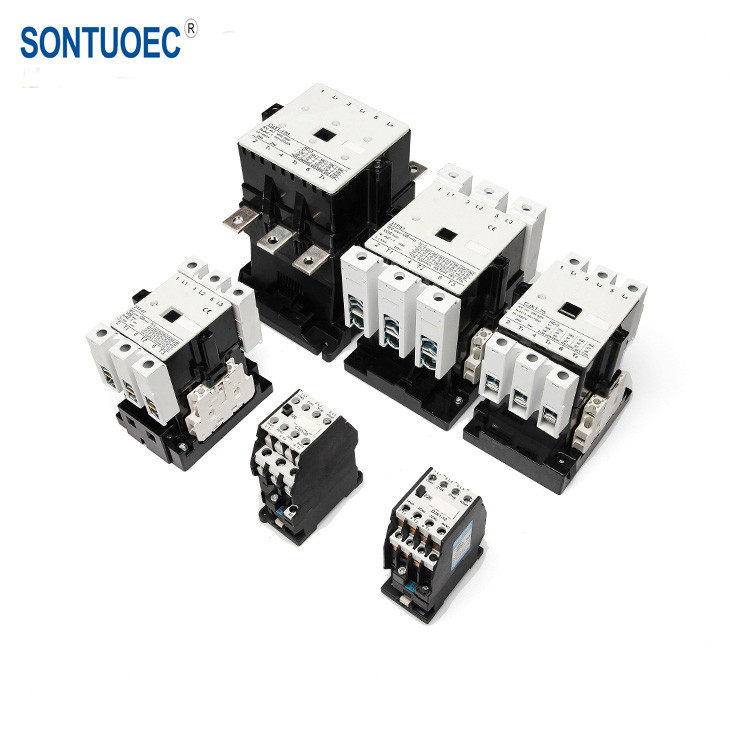

Sontuoec Copper Texture AC Contactor 380v 3P Magnetic ContactorSontuoec Copper Texture AC Contactor 380v 3P Magnetic ContactorSontuoec Copper Texture AC Contactor 380v 3P Magnetic Contactor

Specification:

Type Rated thermal current(A) Rated operation current(A) Controllable power for motor(kw) Type of auxiliary contact
AC-3 AC-4
380V 660V 380V 660V 380V 660V
3TF40 20 9 7 4 5.5 1.4 2.4 NO
NC
1NO+1NC
2NO+2NC
3TF41 20 12 8.5 5.5 7.5 1.9 36.3
3TF42 30 16 12.5 7.5 11 3.5 6
3TF43 30 22 16.5 10 15 4 6.6
3TF44 55 32 24 15 22 7.5 13
3TF45 55 86 24 18.5 22 9 15.5
3TF46 80 45 40 22 37 12 20.8
3TF47 80 63 60 30 55 14 24.3 2NO+2NC

4NO+4NC
3TF48 100 75 60 37 55 17 29.5
3TF49 100 85 80 45 75 21 3.6
3TF50 160 110 95 55 90 27 46.9
3TF51 160 140 120 75 110 35 60
3TF52 200 170 160 90 150 38 66
3TF53 210 205 165 110 160 50 86
3TF54 300 250 230 132 220 58 100
3TF55 300 300 260 160 250 66 114
3TF56 400 400 380 200 335 81 140
3TF58 630

Sontuoec Copper Texture AC Contactor 380v 3P Magnetic Contactor
