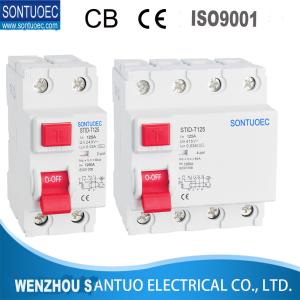

Stid-T125 Series RCCB Residual Current Circuit Breaker
STID-T125 residual current circuit breaker is in conformity with the standards of IEC61008.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 240V,three phase 415V,50 or 60Hz.
Product Over View:
1. Provide protection against earth fault/leakage current and function of isolation
2. High short-circuit current withstand capacity
3. Applicable to terminal and pin/fork type busbar connection
4. Equipped with finger protected connection terminals
5. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
6. Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
| Breaker |
STID-T125 |
| Number of poles |
2P 4P |
| Rated current in |
A 10 16 25 32 40 50 63 80 100 |
| Rated frequency |
Hz 50 |
| Rated operating voltagge Ue |
V 230,400 |
| Rated insulation voltage Ui |
V 500 |
Rated short circuit breaking
capacity Im |
A 630 1000 |
Rated limited short circuit
current Inc |
A 6000 |
Rated residual action
current I△n |
mA 30 100 300 |
| Anti~interference level |
0.5 цs/100kHz,200A peak value |
| 8/20цs, 3000A peak valye |
| Mechanical life |
times 10000 |
| Protection level |
lp20 |
| Product type |
Type A, Type AC,Type S |
| Installation mode |
Din rail plug~in |
| Connection mode |
Terminal with clip |
| Ambient air temperature |
Min/Max ℃ -25/+40 |
| Altitude |
Max m 2000 |
| Leading wire |
Terminal busbar method Min/Max mm 1/35 |
| Screw torque |
N · m : 2.5 |
Outline dimensions
(length X width X height) |
2P mm 90×36×76 |
| 4P mm 92×72×76 |
| Weight |
2P kg 0.275 |
| 4P kg 0.360 |
